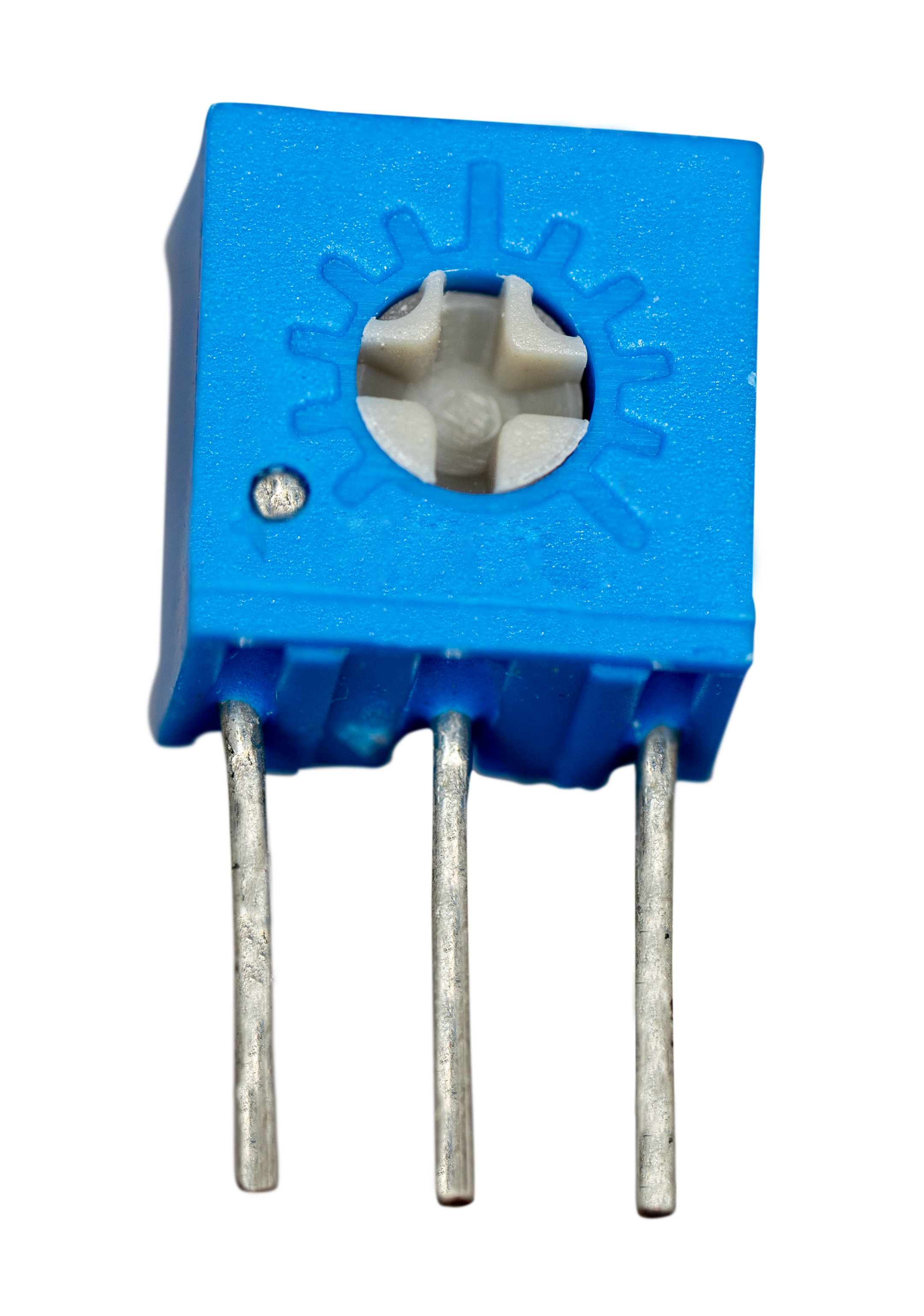

B25X
Single Turn Trimmer
Lifecycle:
Active (Mature)
Series:
B25
1/4" square
Sealed single turn
Cermet
Thru hole
Specifications
| Series | B25 |
|---|---|
| Type | Single Turn |
| Mounting | TH |
| Adjustment Orientation | Side |
| Example MPN | B25XR10KLF |
| Shape | Square |
| Material | Cermet |
| Number of Turns | 1 |
|---|---|
| Size | 1/4" |
| Sealed | True |
| Packaging |
|
| Standard Resistance Min | 100Ω |
|---|---|
| Standard Resistance Max | 1MΩ |
| Standard Resistance Tolerance | 10% |
| Power | 0.5W |
| Operating Temp Min | -55°C |
| Operating Temp Max | 100°C |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
