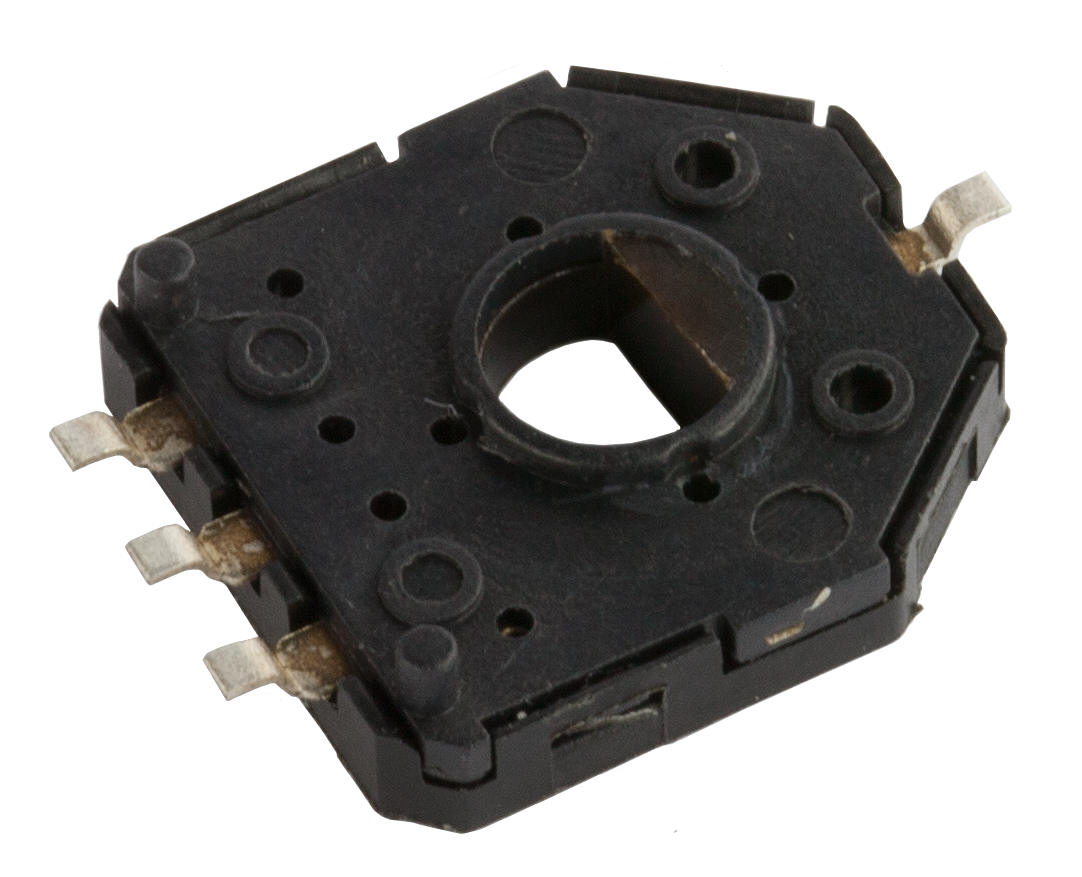

PHS11

OBSOLETE Hollow Shaft Pot

Lifecycle:

Obsolete

Brand:

BI Technologies

Series:

PHS11

Alternative Part Number:

PHS11R

Distributor Inventory
Data Sheet
checkmark

Dust-resistant construction protects the interior from dust, which maintains stable characteristics

checkmark

Excellent resistance materials and high reliability wiper achieves 1,500,000 cycles

checkmark

Ultra-thin size (2.2mm height)

Specifications

Series PHS11
Type of Potentiometer Hollow shaft rotary pot
Element Material Carbon
Example MPN PHS11-1DBR5KE320
Number of Gangs 1
Adjustment Orientation Top
Size (dia. / length) 11mm
Number of Turns 1
Cycle Life, Min 5,000
Total Rotational Travel -
Rotational Torque -
IP Rating -
Resistance min 1kΩ
Resistance max 100kΩ
Standard Resistance Tol 20%
Power Rating 0.1W
Standard Linearity 2 to 5%
Operating Temperature -
Electrical Angle -
Maximum Operating Voltage -
Lifecycle Obsolete
EOL Estimate EOL in Sep 2023
Latest PCN Date 4 Sep 23
Alternative Part Number PHS11R
