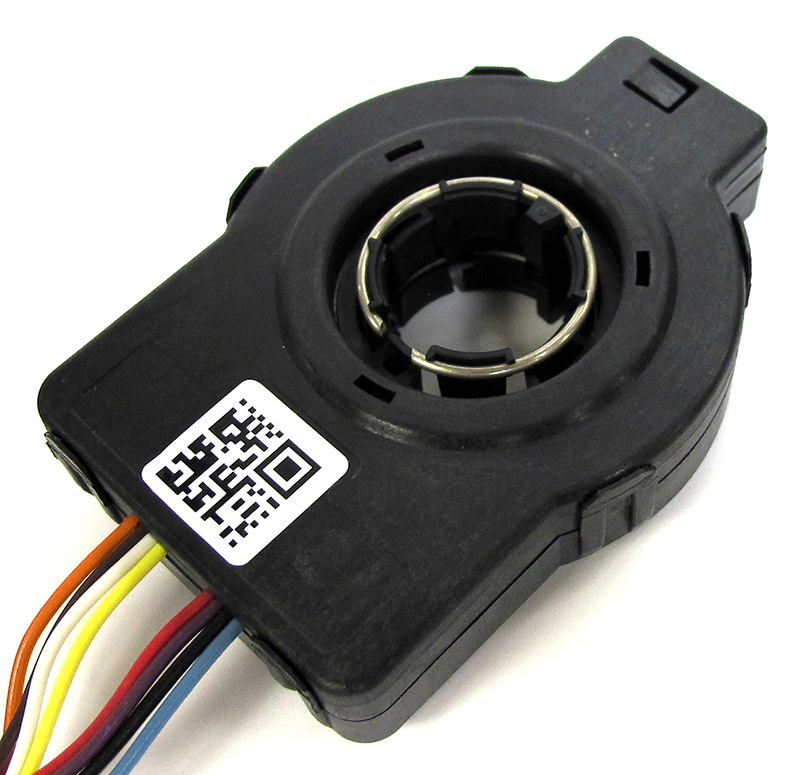

SX-4417
Steering Torque and Position Sensor
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Dual torque and multi-turn position outputs in one compact package
Redundant outputs for full diagnostics
Non-contacting
Lead-free
RoHS 2 compliant
Specifications
| Technology | Magnetic |
|---|---|
| Torque Angle | 5+/- ° |
| Position Angle | 900+/- ° |
| Number of Wires | 8 |
|---|---|
| Connector Model | Delphi 15406142 |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
