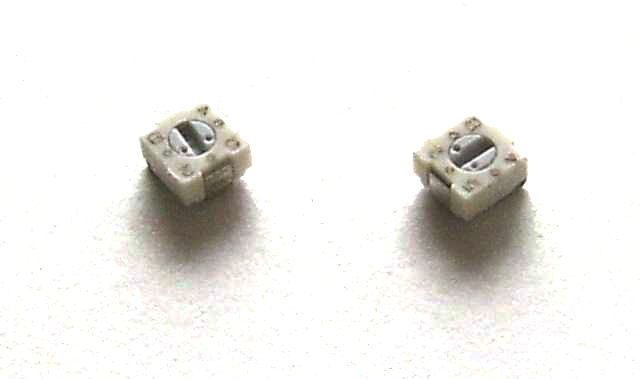

22A

Single Turn Trimmer

Lifecycle:

Active (Mature)

Brand:

BI Technologies

Series:

22

Distributor Inventory
Data Sheet
checkmark

3 mm square

checkmark

Sealed single turn

checkmark

Cermet

checkmark

Surface mount

Specifications

Series 22
Type Single Turn
Mounting SMT
Adjustment Orientation Top
Example MPN 22ACR10KLFTR
Shape Square
Material Cermet
Number of Turns 1
Size 3 mm
Sealed True
Packaging
  • Standard: Boxes. Capacity = 100 units
  • Option (TR code): Tape & Reel. All units oriented with #2 (slider) pin adjacent to sprocket holes.
Standard Resistance Min 100Ω
Standard Resistance Max 2MΩ
Standard Resistance Tolerance 20%
Power 0.125W
Operating Temp Min -55°C
Operating Temp Max 125°C
Lifecycle Active (Mature)
EOL Estimate No EOL planned
Latest PCN Date No PCNs
Alternative Part Number -
