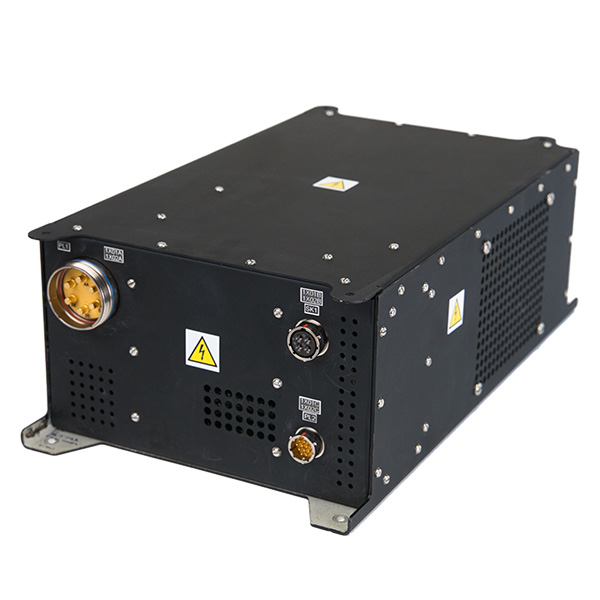

DC-AC Converter

High Reliability Ultra Compact Solutions

Lifecycle:

Mature

Brand:

Ferranti

Quote Request
Data Sheet
checkmark

Status: In Service on the Airbus A400M Military Transport

checkmark

Supports AC load up to 2.5kVA during emergency RAT deployment

checkmark

Hardware BIT and Health Status relayed to aircraft

checkmark

Design Assurance to DO-254 DAL B

checkmark

Forced Air Cooled

checkmark

EMC to EUROCAE ED14D/DO-160D/MIL-STD-461E

checkmark

Environmental to EUROCAE ED14, DO-160G, MIL-STD-810F, ABD0100.1.2

Specifications

Output -
DC Input 28V
DC Output 115V, 3-phase, 400Hz.
Efficiency >83%.
Ripple -
Rating -
Thermal -
Power -
