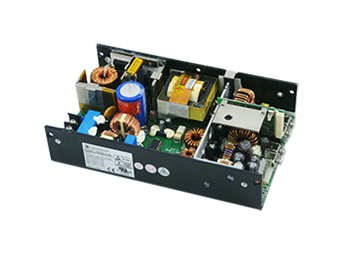

PM300-14C
Enclosed Power Supply 24V 300 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM300
EN61000-3-2 class A and D compliant
Power Factor 0.98 typical
Overvoltage protection
Short-circuit protection
Power Fail Detect (PFD) signal
100% burn-in at full rated load
Remote sense on output #1 and output #2
Remote inhibit – TTL high to disable output
Compliant with RoHS requirements
Specifications
| Output Power | 300W |
|---|---|
| Number of Outputs | 1V |
| Output Voltage 1 | 24V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 12.5A |
| Output 1 Max Current with CFM | - |
| CFM | - |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Class | I |
| Battery Charger | False |
| Temperature | 0-70 (Derate from 100% at +50℃, linearly to 50% at +70℃)C |
| Dimensions | 114.3x165.1x44.45mm |
| Product Brand | Protek |
Resources & Technical Documents
- All (1)
- 3D Model (0)
- Application Note (0)
- Brochure (0)
- Compliance (0)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- Datasheet (1)
| Datasheet | PM300 |
