PM301-14A

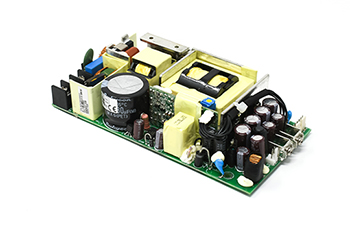

Open Frame Power Supply 24V 300 Watt

Lifecycle:

Mature

Brand:

Protek

Series:

PM301

checkmark

BF Class insulation

checkmark

Operation altitude up to 5000 meters

checkmark

Suitable for both Class I and Class II applications*

checkmark

3 x 6 inch foot print with 1.5 inch low profile

checkmark

Less than 220 μA leakage current

checkmark

Meet EN55011/55022 and FCC Class B

checkmark

Power Factor 0.98 typical

checkmark

100% burn-in at full load

checkmark

Short-circuit protection (Latch)

checkmark

Power Fail Detect (PFD) signal

checkmark

Inhibit - TTL high to disable output

checkmark

Compliant with RoHS requirements

checkmark

High Efficiency 92% typical

checkmark

Power consumption in standby mode less than 1W at standby power 5 V/100 mA

Specifications

Output Power 300W
Output Voltage 1 24V
Output Voltage 2 -
Output Voltage 3 -
Output Voltage 4 -
Output Current 1 8.340A
Application Medical
Product Brand Protek

Resources & Technical Documents

  • All (1)
  • 3D Model (0)
  • Application Note (0)
  • Brochure (0)
  • Compliance (0)
  • End Of Life (0)
  • Product Change Notification (0)
  • Case Study (0)
  • Technical Bulletin (0)
  • Policy & Regulations (0)
  • Terms & Conditions (0)
  • White Paper (0)
  • Datasheet (1)
Datasheet PM301
