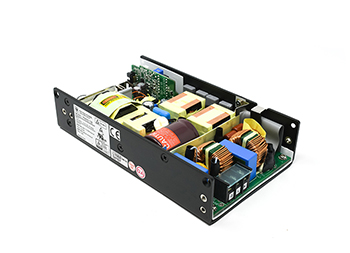

PM400-17B
U-Channel Power Supply 36V 400 Watt
Lifecycle:
Mature
Brand:
Protek
Series:
PM400
BF Class insulation
Operation altitude up to 5000 meters
100-240 VAC input with act ive PFC
Less than 300 μA leakage current
Standby output 5VDC at 100mA
EN55011 / 55022 Class B conducted emissions
Inhibit - TTL low to disable output
Standard PS Off and DC OK signals
High Efficiency 92% typical
Compliant with RoHS requirements
Specifications
| Output Power | 400W |
|---|---|
| Output Voltage 1 | 36V |
| Output Voltage 2 | - |
| Output Voltage 3 | - |
| Output Voltage 4 | - |
| Output Current 1 | 8.64A |
| Output 1 Max Current with CFM | 11.12A |
| CFM | 7A |
| Output 2 Max Current | - |
| Output 3 Max Current | - |
| Output 4 Max Current | - |
| Application | Medical |
| Input Class | I |
| Number of Outputs | 1 |
| Temperature | -10°C to 70°C (Derate from 100% at +50°C linearly to 50% at +70°C, applicable to convectionand forced-air cooling conditions)C |
| Dimensions | 101.6x139.7x39.6mm |
| Product Brand | Protek |
