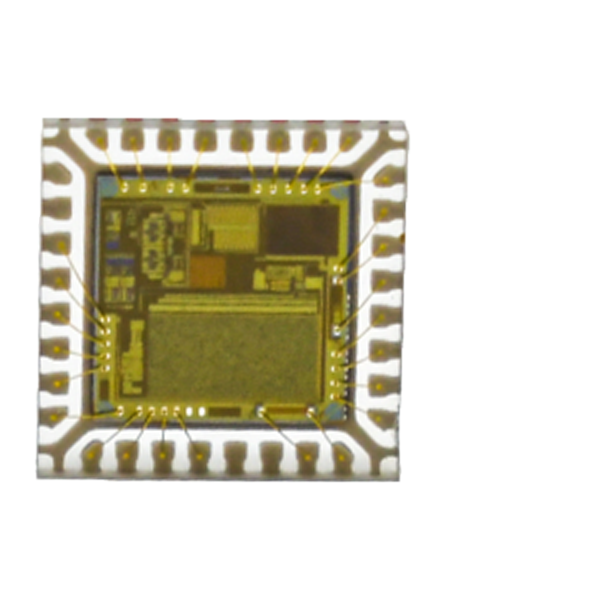

FS210

FlexSense Transmissive Increment Encoder Sensor

Lifecycle:

Active (Growth)

Brand:

Optek Technology

Distributor Inventory
Data Sheet
checkmark

TO-72 hermetically sealed package

checkmark

1 kVDC electrical isolation

checkmark

High current transfer ratio

checkmark

TX and TXV devices processed to MIL-PRF-19500

Specifications

Applications
  • High-voltage isolation between input and output
  • Electrical isolation in dirty environments
  • Industrial equipment
  • Medical equipment
  • Office equipment
Packaging SMD OptoQFN 5mm x 5mm
Lead Spacing -
Component Type Incremental Encoder Sensor
High Reliability False
Screening Level -
Hall Effect No
Photologic Yes
Photo Detector Type User configurable: Analog or Digital
Number of Elements Programmable Photodiode Array
Material Silicon
Color Clear
Lead Length Min -
Lead Length Max -
Receiver Type CMOS Mixed Signal PhotoASIC
Responsivity Min/Max/Typ -
RoHs Compliance Y
Wavelength -
Beam Angle -
Viewing Angle -
Output Power (mW/cm2) Min/Max 10mW / cm^2mW / cm2
Operating Temperature -40°C ~ 125°C
Data Rate Max 400K
Rise Time Typ -
Reverse Voltage -
Peak Response Wavelength 420 to 940nm
Spectral Response Wavelength 400 to 950nm
Output Type User Configurable Digital or Analog
VCE Max -
VCC Range 3.3 / 3.6V
IF Typ/Max -
Forward-Current Transfer Ratio Min -
Forward-Current Transfer Ratio Max -
Light Current IC(ON) Min -
Light Current IC(ON) Max -
ICCL/ICCH -
