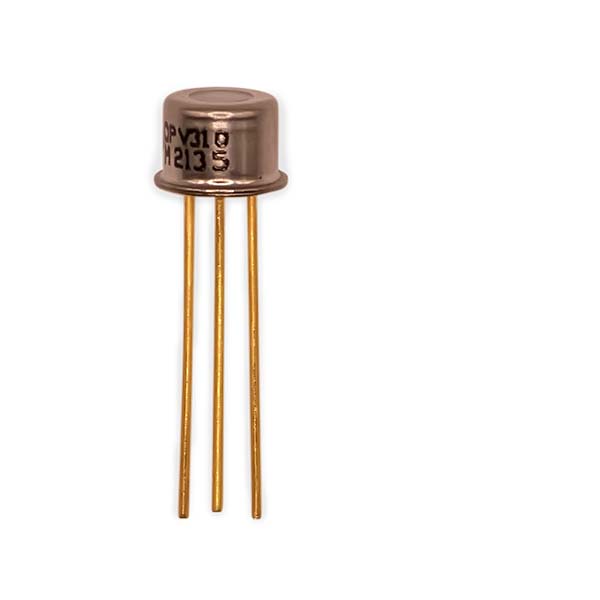

OPV310
Vertical Cavity Surface Emitting Laser
Lifecycle:
Active (Mature)
Brand:
Optek Technology
850nm VCSEL technology
Data rates up to 2.5 Gbps
High thermal stability
Low drive current / high output density
Narrow and concentric beam angle
Recommended for multimode fiber applications
Burned in for communication level reliability
Specifications
| Applications |
|
|---|---|
| Package | TO-46 Flat Window |
| Receiver Output Type | - |
| Receiver or Transmitter | Transmitter |
| High Reliability | No |
| Hall Effect | No |
| Photologic | No |
| Lead Length Min | 0.5" |
| Lead Length Max | 0.5" |
| Responsivity Min/Max/Typ | 110 / 110mV / µw |
| Fiber Size | 1Mm |
| RoHs Compliance | Y |
| Laser Class | 1M |
| Wavelength | 850nm |
|---|---|
| Supply Voltage | - |
| IF (mA) Max | 12mA |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate Max | - |
| Input Sensitivity | - |
| Peak Input Power | 24dbm / µw |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Output Type | VCSEL - Light output |
| VCE Max | - |
| VCC Max Range | - |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
