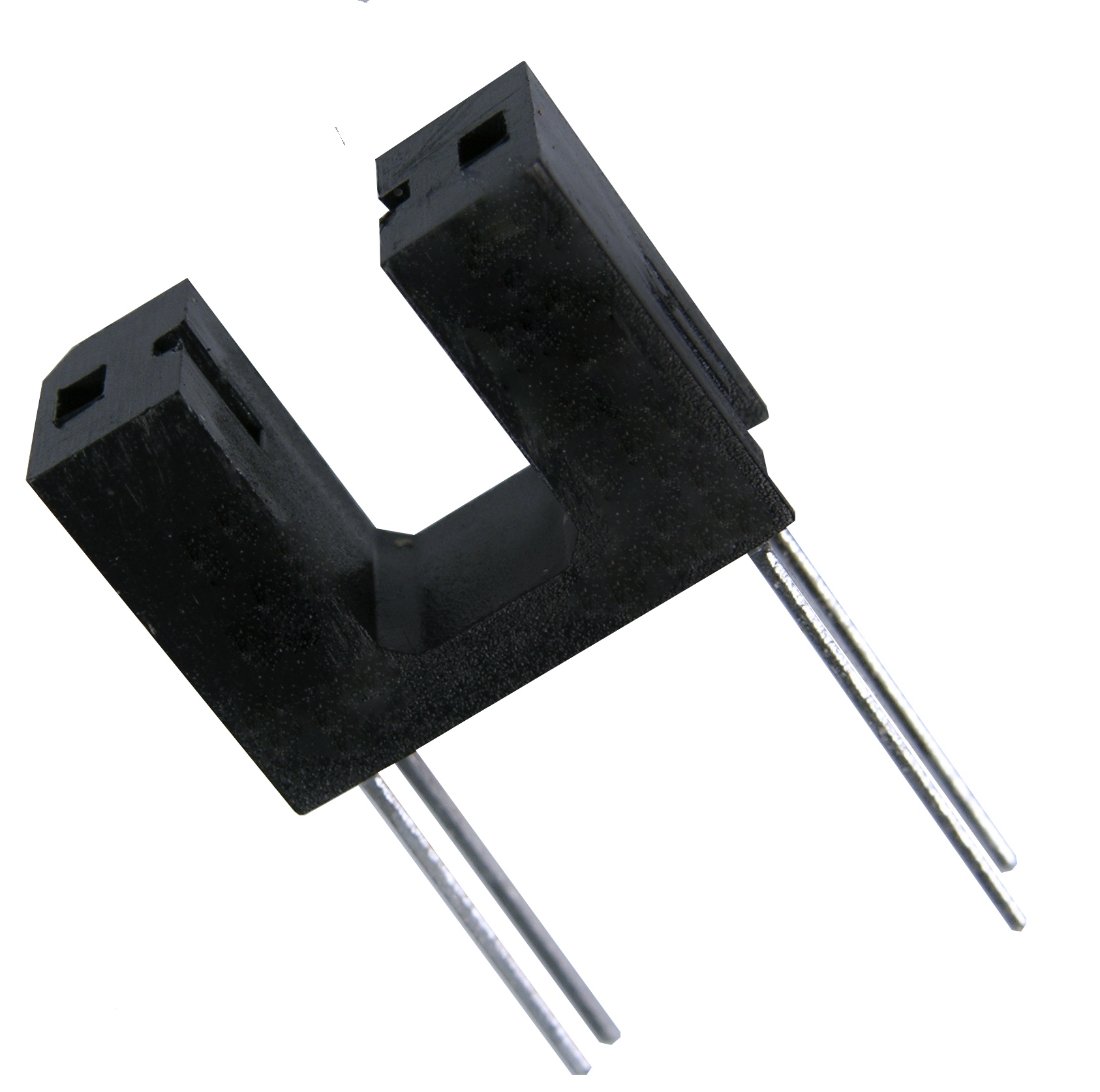

OPB200
Slotted Switch, L Package
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Housing material opaque to visible and infrared light
Non–contact switching
Printed PCBoard mount
0.200” (5.1mm) slot width, 0.320” (8.1mm) slot depth
Specifications
| Applications |
|
|---|---|
| Package Termination | Through-Hole |
| Slot Width | 0.2" |
| Slot Depth | 0.32" |
| Aperture Width Emitter / Sensor | 0.06 / 0.06" |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Interrupter Type | Slotted |
| Package | Switch, slotted LNPT |
| Lead Length Min | 0.425" |
| Lead Length Max | 0.425" |
| RoHs Compliance | Y |
| Output Type | Phototransistor |
|---|---|
| Supply Voltage | 3 ~ 24V |
| Operating Temperature | -40°C ~ 85°C |
| Wavelength | 890nm |
| VCE Max | 30V |
| VCC Range | - |
| Angle | - |
| IF Typ/Max | 20 / 50mA |
| Light Current IC(ON) Min | 1mA |
| Light Current IC(ON) Max | 6mA |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
