OPB828D

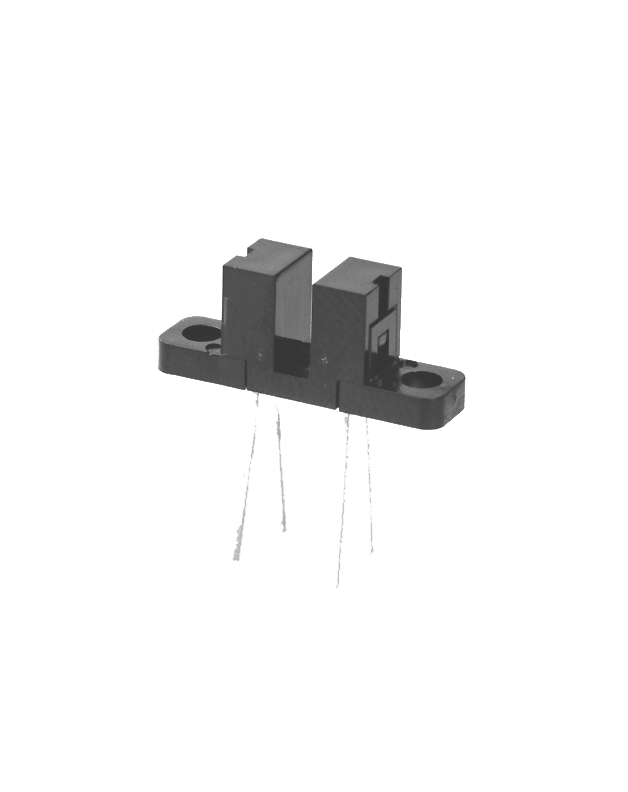

Slotted Switch, T Package
Lifecycle:
Active (Mature)
Brand:
Optek Technology
0.125" (3.18mm) wide, 0.315" (8.00mm) deep slot
0.305" (7.75mm) lead spacing (OPB827)
0.220" (5.59mm) lead spacing (OPB828)
24-inch 26 AWG wire leads (OPB829)
Inexpensive plastic housing
Specifications
| Applications |
|
|---|---|
| Package Termination | Through-Hole |
| Slot Width | 0.12" |
| Slot Depth | 0.315" |
| Aperture Width Emitter / Sensor | 0.06 / 0.01" |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Interrupter Type | Slotted |
| Package | Switch, slotted LNPT |
| Lead Length Min | 0.425" |
| Lead Length Max | 0.425" |
| RoHs Compliance | Y |
| Output Type | Phototransistor |
|---|---|
| Supply Voltage | 3 ~ 24V |
| Operating Temperature | -40°C ~ 85°C |
| Wavelength | 890nm |
| VCE Max | 30V |
| VCC Range | - |
| Angle | - |
| IF Typ/Max | 20 / 50mA |
| Light Current IC(ON) Min | 1.8mA |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
