Lifecycle:
Active (Mature)
Brand:
IRC
Series:
1900
| Series | 1900 |
|---|---|
| Application | Network / array Precision |
| Mounting | Through hole |

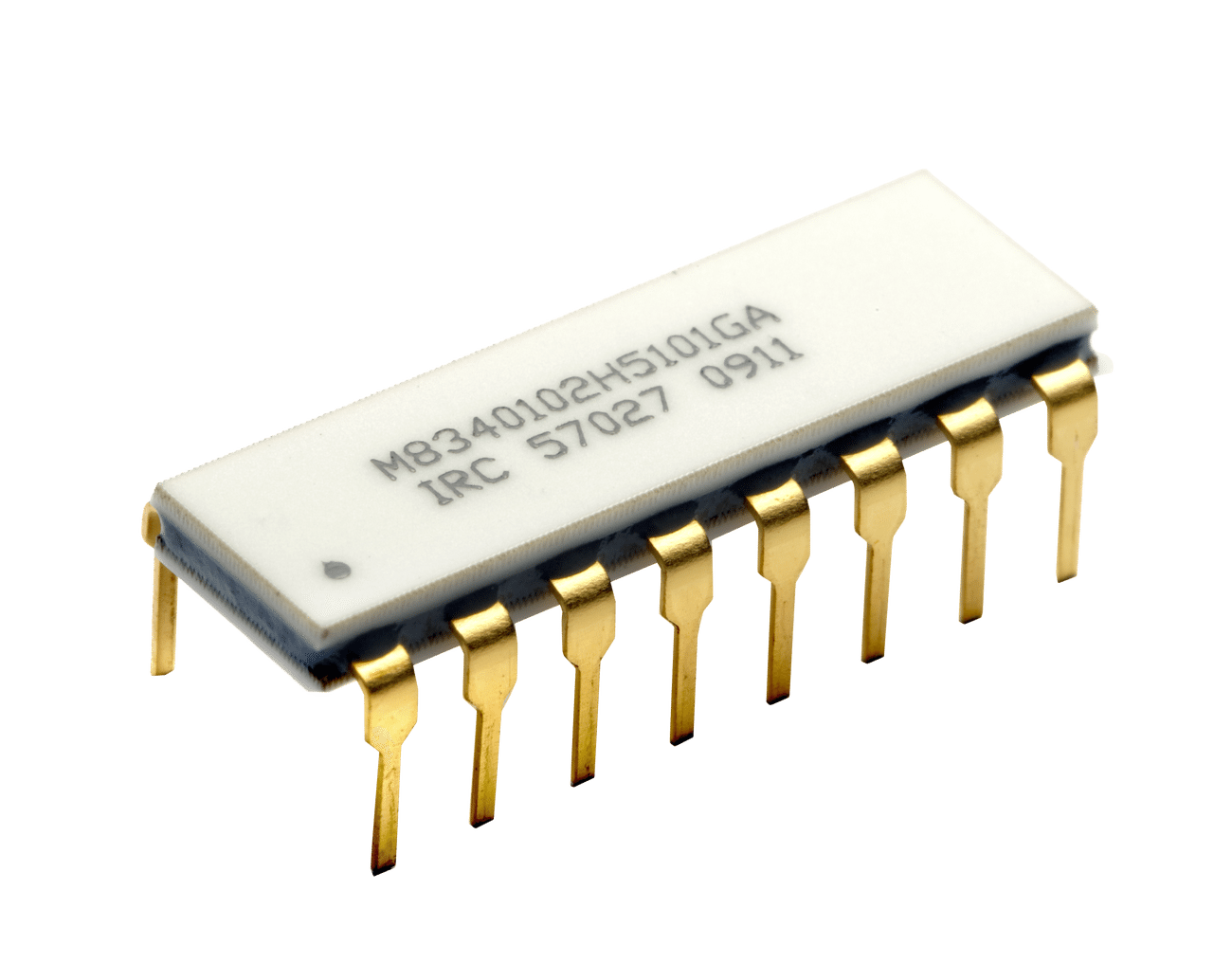

| Package | Network ceramic |
| Technology | TaN film |
| Approval | MIL-PRF-83401 |
| Example MPN | M83401-01-K-1001-F-B |
| Termination Options |
|
| Power | 0.1W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 150°C |
| Max Ambient Temperature | 150°C |
| LEV | 100V |
| Resistance min | 50Ω |
| Resistance max | 70kΩ |
| Critical Resistance (where applying LEV dissipates Pr) | Out of Range: -Ω |
| Best Tolerance | 0.1% |
| Best TCR | 5ppm/°C |
| Isolation Voltage of Insulation | Unspecified: ?V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | None |
| China RoHS (if Pb-free) | Compliant |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | See EMRT Excel file (below) |
| Termination Finish (if Pb-free) | e4 - Au |
| Termination Finish (if Pb-bearing) | 60/40 |
| How to Specify Pb-Free | All standard part numbers are Pb-free |
| ECCN | EAR99 |
| Packing | Tube |
|---|---|
| Quantity | 30 |
| Nett Weight Each | - |
| Reflow Process | Not applicable |
| MSL | Not applicable |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Active (Mature) |
| EOL Date / YTEOL Estimate | 5 years or more. (Reviewed May 24) |
| Latest PCN Date | 15 Jul 20 |
| Alternative Part Number | - |
| Datasheet | 1900 | |
| Application Note | TN001 Advice on Storage Conditions for Fixed Resistors | |
| Application Note | TN002 Instant Access to RoHS REACH Conflict Mineral and other Compliance Data Online | |
| Application Note | TN003 Methods for Coding Resistor Values in Part Numbers | |
| Application Note | TN005 EIA Standard Values for Resistors | |
| Application Note | TN007 Instant Access to Life Cycle and Obsolete Product Data Online | |
| Application Note | TN009 Parametric and Category Searching for Resistors | |
| Brochure | SnPb Terminations Portfolio | |
| Compliance | Dallas ISO 9001 | |
| Compliance | Dallas ISO 14001 2015 | |
| Compliance | RoHS M83401 | |
| Compliance | REACH Statement Dallas | |
| Compliance | CMRT Conflict Mineral Dallas | |
| Compliance | EMRT Extended Mineral Dallas | |
| Compliance | Proposition 65 Declaration Dallas | |
| Compliance | TSCA Statement Dallas | |
| Compliance | PFAS | |
| Compliance | POPs | |
| Product Change Notification | PCNs for 1900 |
