6127

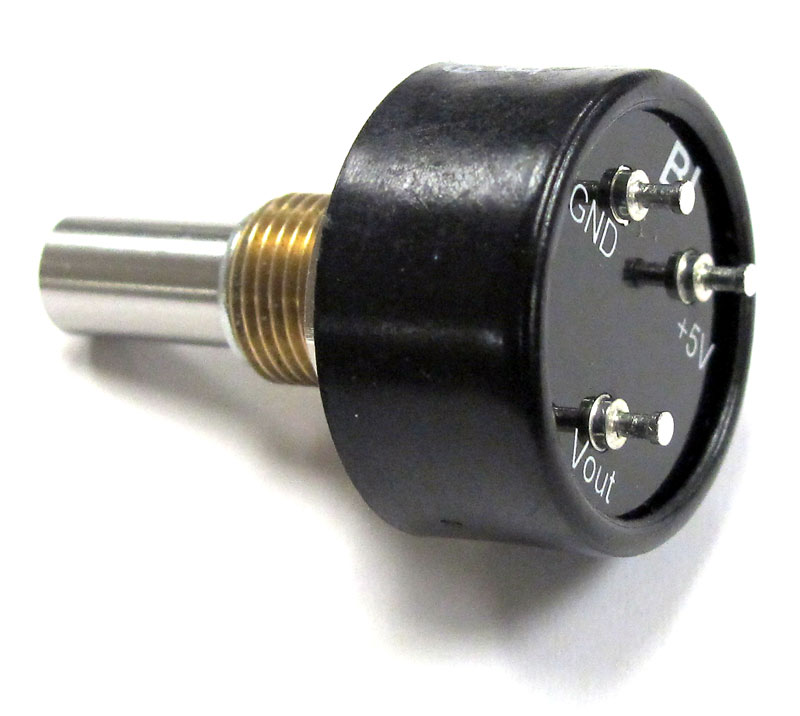

Non-Contacting Hall-Effect Single Turn Position Sensor, 1/4" shaft, 3/8" bushing
Lifecycle:
Active (Mature)
Brand:
BI Technologies
Series:
6120
7/8" diameter
Non-contacting
Hall-effect technology
Single turn
Multiple styles available
Custom models available
Specifications
| Series | 6120 |
|---|---|
| Type of Potentiometer | Non-contacting rotary sensor |
| Element Material | Hall-Effect |
| Example MPN | 6127V1A360L.5 |
| Number of Gangs | 1 |
| Adjustment Orientation | - |
| Size (dia. / length) | 22.2mm |
|---|---|
| Number of Turns | 1 |
| Cycle Life, Min | 10,000,000 |
| Total Rotational Travel | - |
| Rotational Torque | - |
| IP Rating | - |
| Resistance min | - |
|---|---|
| Resistance max | - |
| Standard Resistance Tol | - |
| Power Rating | 0W |
| Standard Linearity | 0.5% |
| Operating Temperature | - |
| Electrical Angle | - |
| Maximum Operating Voltage | - |
| Lifecycle | Active (Mature) |
|---|---|
| EOL Estimate | No EOL planned |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
