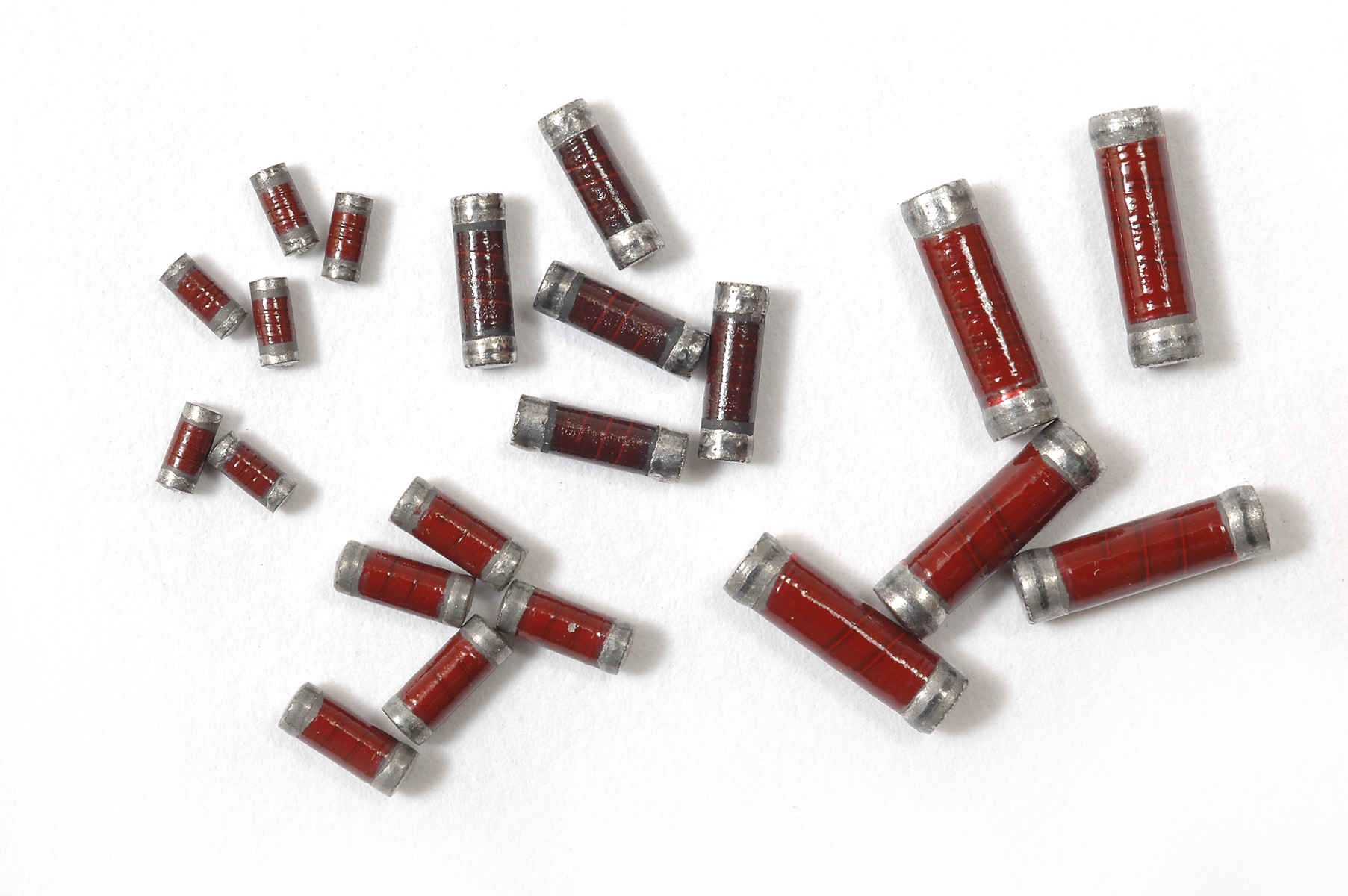

| Series | CHP |
|---|---|
| Application | Surge / pulse |
| Mounting | SMD - solder |
| Package | MELF |
| Technology | Thick film |
| Approval | AEC-Q200 |
| Example MPN | CHP1-220KFI or CHP11002203FLF |
| Termination Options |
|
| Power | 1W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 150°C |
| Max Ambient Temperature | 150°C |
| LEV | 350V |
| Resistance min | 0.1Ω |
| Resistance max | 2.21MΩ |
| Critical Resistance (where applying LEV dissipates Pr) | 123kΩ |
| Best Tolerance | 0.25% |
| Best TCR | 50ppm/°C |
| Isolation Voltage of Insulation | - |
| RoHS Compliant (if Pb-free) | - |
|---|---|
| RoHS Exemption | - |
| China RoHS (if Pb-free) | - |
| REACH Status (if Pb-free) | - |
| CMRT Conflict Mineral Status | - |
| EMRT Extended Mineral Status | - |
| Termination Finish (if Pb-free) | e1 - SnAgCu |
| Termination Finish (if Pb-bearing) | 60/40 |
| How to Specify Pb-Free | Part number has LF suffix |
| ECCN | EAR99 |
| Packing | Plastic tape & reel |
|---|---|
| Quantity | 1500 |
| Nett Weight Each | 0.0754g |
| Reflow Process | J-STD-020E |
| MSL | 1 |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Obsolete |
| EOL Date / YTEOL Estimate | EOL in Jun 2019 |
| Latest PCN Date | 01 Apr 19 |
| Alternative Part Number |
|
