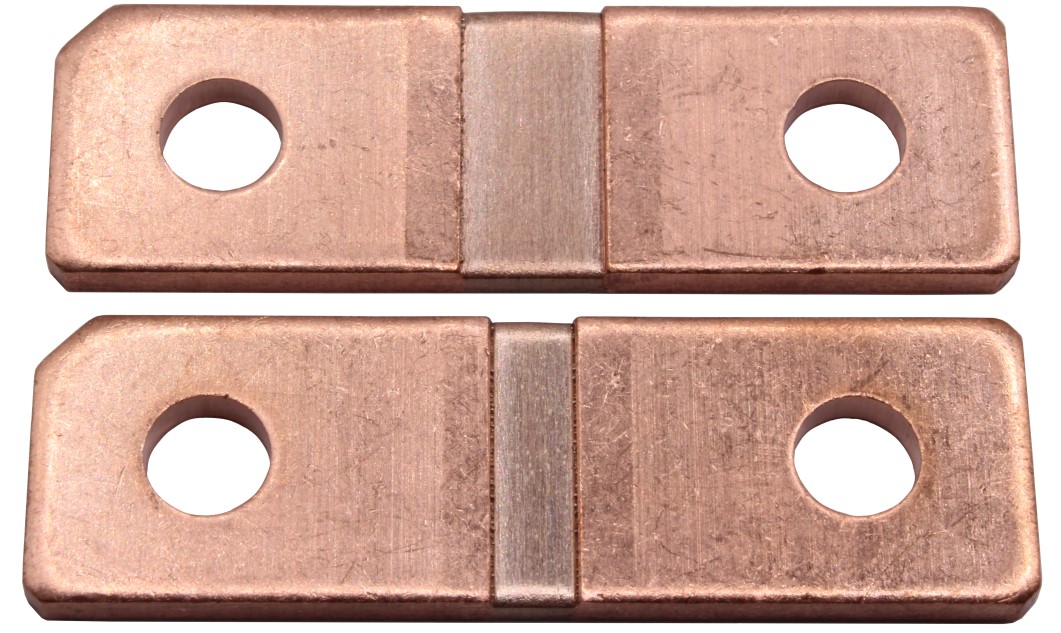

EBW5216

E-beam welded shunt 5216

Lifecycle:

Active (Growth)

Brand:

Welwyn

Series:

EBW5216

Specifications

Series EBW5216
Application Current sense
Mounting Non-PCB
Package Busbar
Technology Metal element
Approval AEC-Q200
Example MPN EBW5216PNT-L050JB
Termination Options Non-solder
Power 15W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 170°C
Max Ambient Temperature 170°C
LEV -
Resistance min .05mΩ
Resistance max .1mΩ
Critical Resistance (where applying LEV dissipates Pr) N/A: -Ω
Best Tolerance 1%
Best TCR 150ppm/°C
Isolation Voltage of Insulation Uninsulated: 0V
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption None
China RoHS (if Pb-free) Compliant
REACH Status (if Pb-free) See REACH statement pdf (below)
CMRT Conflict Mineral Status See CMRT Excel file (below)
EMRT Extended Mineral Status No EMRT available
Termination Finish (if Pb-free) Non-solder
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN EAR99
Packing Tray or bulk
Quantity 100
Nett Weight Each 20g
Reflow Process Not applicable
MSL Not applicable
Wave Process Not applicable
Shelf-life None defined
Launch Date May 2023
Lifecycle Active (Growth)
EOL Date / YTEOL Estimate 5 years or more. (Reviewed May 24)
Latest PCN Date No PCNs
Alternative Part Number -
