Lifecycle:
Active (Mature)
Brand:
Welwyn
Series:
RC
| Series | RC |
|---|---|
| Application | Precision |
| Mounting | Through hole |
| Package | Axial |
| Technology | Metal film |
| Approval | EN140101 IECQ-CECC40101 |

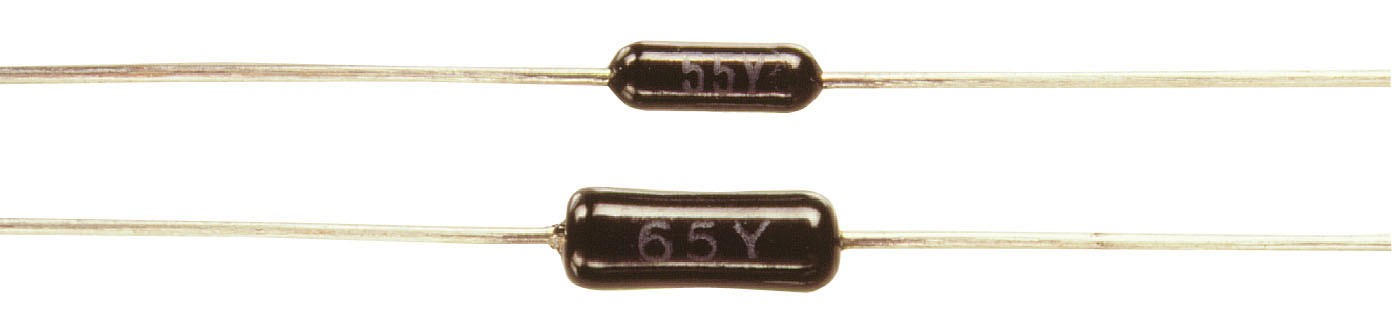

| Example MPN | RC55V-31K6BI or RC55LFV3162BA |
| Termination Options |
|
| Power | 0.25W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 155°C |
| Max Ambient Temperature | 155°C |
| LEV | 350V |
| Resistance min | 1Ω |
| Resistance max | 4MΩ |
| Critical Resistance (where applying LEV dissipates Pr) | 490kΩ |
| Best Tolerance | 0.05% |
| Best TCR | 5ppm/°C |
| Isolation Voltage of Insulation | 500V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | None |
| China RoHS (if Pb-free) | Compliant |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | No EMRT available |
| Termination Finish (if Pb-free) | e3 - Sn hot dipped |
| Termination Finish (if Pb-bearing) | 95/5 (60/40 version available) |
| How to Specify Pb-Free | Part number suffix is I, and not PB or HL |
| ECCN | EAR99 |
| Packing | Tape & ammo pack |
|---|---|
| Quantity | Up to 5000 |
| Nett Weight Each | - |
| Reflow Process | Not applicable |
| MSL | Not applicable |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Active (Mature) |
| EOL Date / YTEOL Estimate | 5 years or more. (Reviewed May 24) |
| Latest PCN Date | 25 Apr 23 |
| Alternative Part Number | - |
